Nexus D2 Housing
(shown with optional
MP-60-4 port)

The new Nexus D2 housing for the Nikon D2 series of Digital SLRs is now available. It will fit the D2x, D2h, and D2hs cameras.

This light and compact D2 underwater camera housing is made from marine grade aluminum alloy.

Dimensions are 327mm x 225mm x 125mm (W/H/D). Weight is 6 lbs. in air. The housing is rated to 246 ft/ 75 m.

here are two models of Nexus D2 housings. One model will fit the F4 size ports, and one model will fit the N90 Master, F-100, D-100, and D70 housings. They are identical in features and dimensions otherwise.

Nexus D2 Housing Features

Nexus D2 Housing Front

The Nexus D2 housing body is equipped with:

Push Buttons or levers to access functions on the D2 camera:

Four corner Multi Selector control

AF Area Mode Selector

Monitor button for image review

Menu button

Thumbnail button

Protect button (Key Icon button on camera)

Enter button

Focus Area Lock Switch

Format/Delete button

Shutter Release and AF Hold lever

Mode Dial

Metering Mode

Exposure Compensation/Flash Mode button

AE/AF Lock

ISO, Qual, WB buttons on base of camera body

Main Command knob

Sub Command knob

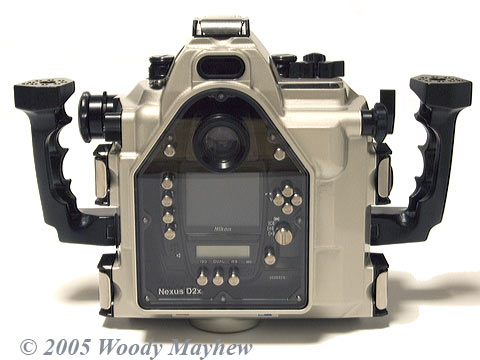

D2Rear

Other features include:

On/Off Button

Aperture Knob (apertures are selected inside the camera body with this knob)

Focus/Zoom knob with lockout for Autofocus when using a manual focus gear on the lens

Twin TTL Strobe Sockets are standard equipment

Optical pick-up finder to allow full, corner to corner view of the camera's viewfinder
image and data

Two External Accessory Ports

The Nexus D2 housing body comes with:

Attached Handles
Wrench Set

Hot shoe TTL cable

O-ring Grease

Control Label Decals

Spare Body O-ring

Operator's Manual

Warranty

Nexus D2 housing body price - $3742.00

Contact Nexus America for additional information or to purchase a Nexus D70 Housing from this site.

Visit the MultiPort Page for descriptions and photos of the Nexus Multi Ports.
