Underwater Camera Housings

Table of Contents:

Nikon D2x Housings - Nikon D2x, D2h, D2hs Cameras
Nexus Nikon D100 Digital Underwater Camera Housing

Nexus Nikon F100 Film Underwater Camera Housing
Nexus Nikon F4 Underwater Camera Housing
NexusNikon N90D / F90x Camera Housings
MultiPort Page

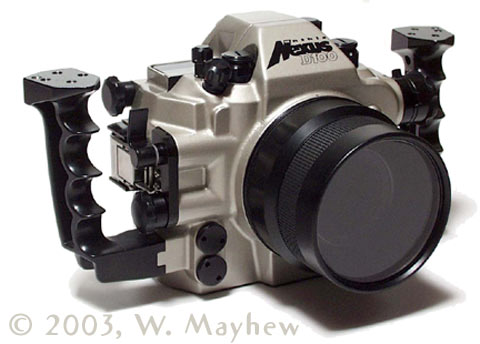

Nexus D-100 Housing Body
Digital Underwater Camera Housing
Nexus D-100 Housing
(shown with optional
MP-60-4 port)

The new Nexus D100 housing for the Nikon D-100 Digital SLR is now available.

This light and compact D100 underwater camera housing is made from marine grade aluminum alloy.

Dimensions are 320mm x 171mm x 125mm (W/H/D). Weight is 4.5 lbs. or 1,946 grams in air. The housing is rated to 246 ft/ 75 m.

The Nexus D-100 housing uses the same ports, gears, and accessories as the earlier N90 and N90 Master housings and the new N-80 and F-100 housings.


Nexus D-100 Housing Features

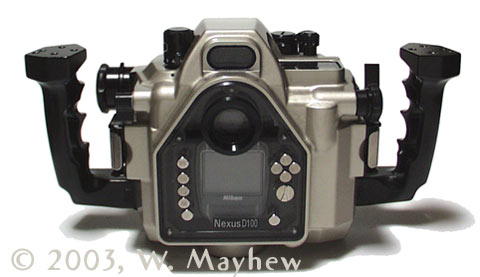

Nexus D100 Housing

The Nexus D-100 housing body is equipped with:

Push Buttons to access functions on the back of the D-100 camera:

- Monitor button
- Menu button
- Thumbnail button
- Protect button
- Enter button
- Multi Selector
- Focus Area Lock Switch
- Delete button
- Shutter Release and AF Hold lever
- Mode Dial
- Exposure Compensation/Flash Mode button
- Main Command knob
- Sub Command knob

Nexus Nikon D100 digital underwater camera housing

Other features include:
  1. On/Off Button
  2. Aperture Gear (you can choose to use manual aperture gear if you wish)
  3. Focus/Zoom knob with lockout for Autofocus when using a manual focus gear on the lens
  4. Twin TTL Strobe Sockets are standard equipment
  5. Optical pick-up finder to allow full, corner to corner view of the camera's viewfinder
    image and data
  6. Two External Accessory Ports
The Nexus D-100 housing body comes with:
  • Attached Handles
  • Body Cap
  • Pressure Relief Cap (screws into the center of the body cap)
  • Function Cap for camera body
  • Wrench Set
    Hot shoe TTL cable
  • O-ring Grease
  • Control Label Decals
  • Spare Body O-ring
  • Operator's Manual
  • Warranty
Nexus D-100 housing body - $2507.00


Contact Nexus America for additional information or to purchase products from this site.

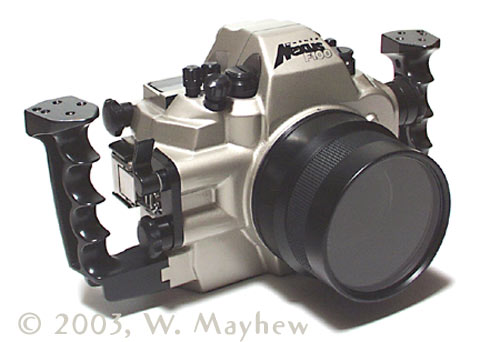

Nexus F-100 Housing Body
Nexus Housing for the Nikon F-100 camera, underwater
Nexus D-100 Housing
(shown with optional
MP-60-4 port)

The new Nexus F100 housing for the Nikon F-100 Film SLR is now available.

This light and compact F100 underwater camera housing is made from marine grade aluminum alloy.

Dimensions are 330mm x 170mm x 120mm (W/H/D. Weight is 4.6 lbs. or 1,990 grams in air. The housing is rated to 246 ft/ 75 m.

The Nexus F-100 housing uses the same ports, gears, and accessories as the earlier N90 and N90 Master housings and the new N-80 and F-100 housings.


Nexus F-100 Housing Features

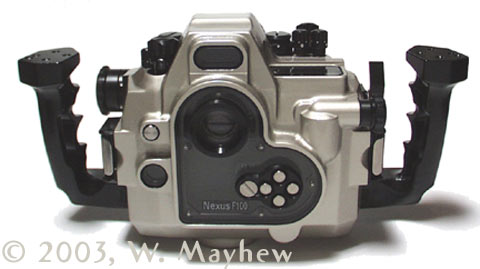

Nexus F100 Housing

The new Nexus F-100 housing allows extensive control over the Nikon F-100 camera functions. The F-100 housing body is equipped with:

Push Buttons to access functions on the back of the Nikon F-100 camera:

-Focus Zone select buttons
-Focus Area Lock Switch
-Shutter Release and AF Hold lever
-Camera Mode Dial
-Exposure Compensation button
-Main Command knob
-Sub Command knob


Nexus Nikon F100 digital underwater camera housing

Other features include:

  1. On/Off Button
  2. Aperture Gear (you can choose to use manual aperture gear if you wish)
  3. Focus/Zoom knob for manual focus or zoom (with proper gear for lens used)
  4. Twin TTL Strobe Sockets are standard equipment
  5. Optical pick-up finder to allow full, corner to corner view of the camera's viewfinder
    image and data readout
  6. Two External Accessory Ports
The Nexus F-100 housing body comes with:
  • Attached Handles
  • Body Cap with pressure relief valve
  • Pick-up lens for the camera viewfinder eyepiece
  • Mode Control Cap
  • Wrench Set, O-ring Grease
  • Hot Shoe TTL cable
  • Decal Label sheet for Housing Controls
  • Spare Body O-ring
  • Operator's Manual
  • Warranty
Nexus F-100 housing body - $2697.00


Contact Nexus America for additional information or to purchase products from this site.


Nexus F4 Pro Housing Body
link to detailed Nexus F4 Pro Housing photo
(detailed photo)

(shown with optional
MP-60-4 port)
The Nexus F4 Pro housing is made to fit the Nikon F4 camera. The Nikon F4 camera is a proven performer, rugged and well designed.The optional DA-20 Action Finder adds the largest viewfinder image available in a 35mm SLR camera, a critical feature in underwater photography. The new Nexus F4 Pro housing is unbelievably small and lightweight both above and below the water.
Nexus F4 Pro N4-Pro Housing Features

Very Light and Compact Design with:

  1. Nexus Grip. Strong, durable, and light. Removes with a single screw. Hole for Carrying Strap in grip and stainless steel inserts in accessory screw holes.
  2. Autofocus Lock lever
  3. Shutter Release and Autofocus Actuating Lever.
  4. Lock Button Release Knob (screw type)
  5. On/Off Switch and Film Advance Mode Selector knob.
  6. Primary TTL Strobe Socket (Nikonos 5-Pin Type).
Nexus F4 Pro Controls
  1. Secondary TTL Stobe Socket (Nikonos 5-Pin Type).
  2. Manual Focus (or Manual Zoom) Knob.
  3. Aperture Select Knob.
  4. Latch, left side, with protective ears to prevent accidental opening
  5. Large Viewing Window for viewfinder and databack.
  6. Shutter Speed Select Knob.
  7. Exposure Compensation and Mode Select Knob
  8. Film Exposure Counter Window.
  9. Latch, right side, with protective ears to prevent accidental opening.
Not Shown: Bottom holes for tripod or tray *Aperture Gear not included
Required Camera Accessory - MB-20 Battery Pack (4-AA Batteries)
Recommended Camera Accessories - DA-20 Action Finder, MF-23 Data Back
Nikon F4 with DA-20 and MF-23
F4 pro housing body - $2697.00


Contact Nexus America for additional information.


Nexus N90D Master Housing Body
link to detailed Nexus N90D Master Housing photo
(detailed photo)

(shown with optional
MP-60-3 port)
The Nexus N90 Master housing is made for the Nikon N90s camera. The Nikon N90s (F90x) camera has become the most popular underwater housed camera available today. It is a professional level camera for an advanced amateur price. The Nexus N90 Master NM-9D features a wide selection of controls for the N90s in a very light, compact, and beautifully engineered housing. The Master housing will also fit the 8008s (801x), the 6006 (601), and the N50 (F50) with conversion kits available by special order.
Nexus N90 Master-NM-9D Housing Features
Very Light and Compact Design with:

  1. Nexus Grip. Strong, durable, and light. Removes with a single screw. Hole for Carrying Strap in grip and stainless steel inserts in accessory screw holes.
  2. Shutter Release and Autofocus Actuating Lever.
  3. Command Knob. Operates shutter speed, exposure mode, exposure compensation, and metering pattern controls.
  4. Plug for Optional third TTL Socket or Remote Release (coming soon)
  5. On/Off Switch.
  6. Exposure Compensation Knob.
  7. Primary TTL Strobe Socket.
  8. Metering Pattern knob (screw-in type).
  9. Secondary TTL Strobe Socket.
  10. Mode Select knob (Screw-in type).
  11. Manual Focus (or Manual Zoom) knob.
Nexus N90 Master Controls
  1. Aperture Select knob.
  2. Latch, left side, with protective ears to prevent accidental opening.
  3. Camera Light Pushbutton (activates camera's internal lighting).
  4. Film Type Window.
  5. Large Viewing Window.
  6. Optical Magnifier, corrected for bright, clear viewfider image.
  7. Strobe Ready Light Monitor Window.
  8. Window for Camera's Main LCD Data Panel.
  9. Latch, right side, with protective ears to prevent accidental opening.
  10. Autofocus Lock Lever.
Not Shown:
Focus Mode Selector (S-C-M Switch) located on lower left front of housing body
Bottom holes for tripod or tray. *Aperture Gear not included


N90D Master housing body - $1893.00

Contact Nexus America for additional information.


Visit the MultiPort Page for descriptions and photos of the Nexus Multi Ports.
